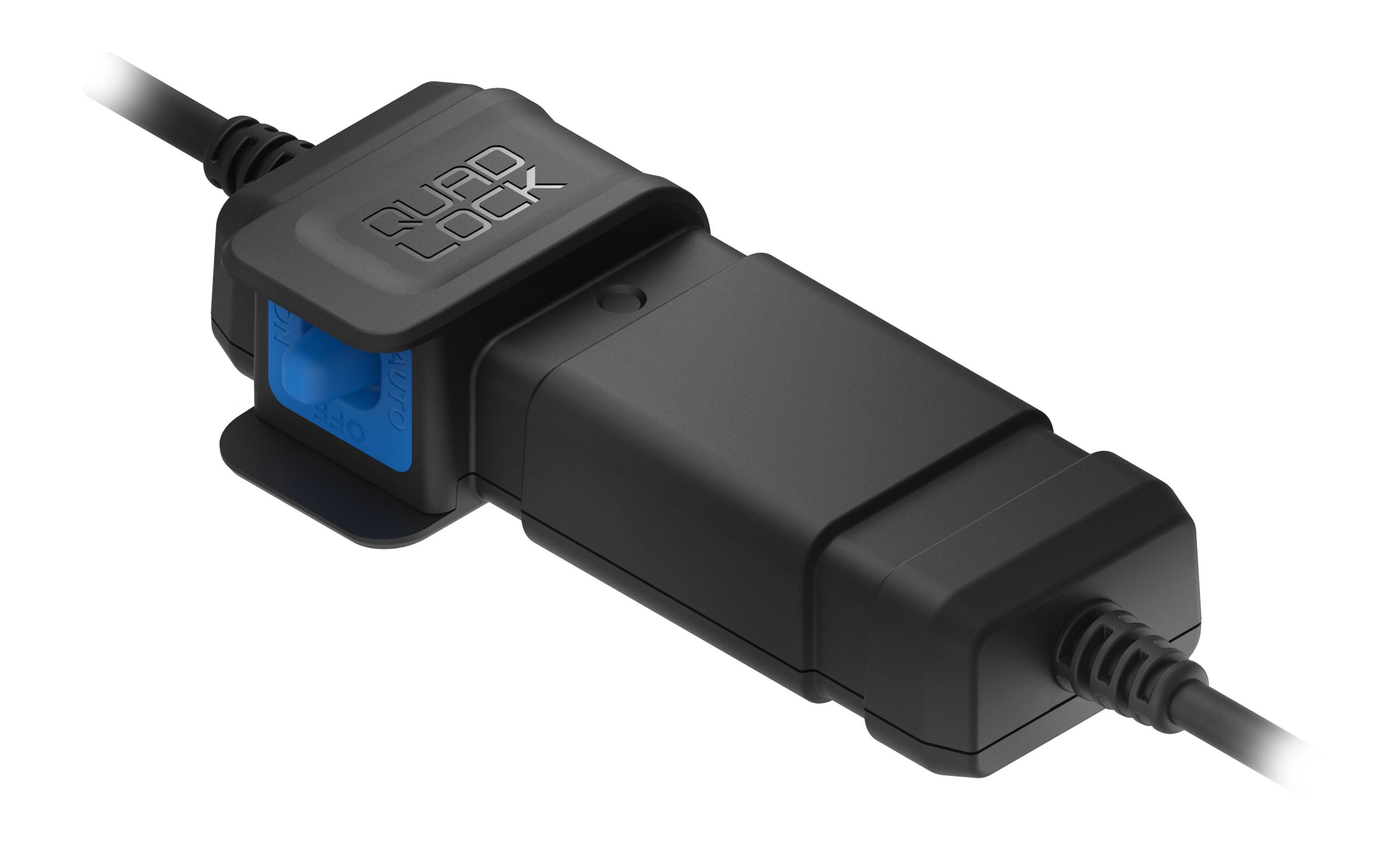

The Quad Lock® Waterproof 12V to USB Smart Adaptor comes with everything needed to power your Quad Lock® Weatherproof Wireless Charging Head from your motorcycle, boat or caravan.
MULTIPLE SWITCHING STATES
Easily toggle the Smart Adaptor between On, Off, and Auto. Use On when connecting the Smart Adaptor to constant 12V - 24V supply, such as your boat or caravan.
Use Auto function to keep the device off until input voltage rises above 13.5V and turn off when input voltage drops below 12.5V. Perfect for your motorcycle, ATV, etc, to avoid battery drain.
REVERSE POLARITY PROTECTION AND IN-LINE SAFETY FUSE
Reverse Polarity Protection saves your battery in the instance the Ring Terminal Cables are connected to the incorrect battery terminals.
And the in-line 3A rated fast blow fuse protects from battery drain in rare case if there were a fault.
Please Note:
Weatherproof Wireless Charging Head not included
FEATURES
Provide power to Quad Lock Weatherproof Wireless Charger via SAE / Battery Ring Terminal
Auto switching mode provides power only when engine is running to avoid battery drain
IP66 Water resistant
Reverse Polarity Protection
3A rated in-line fast blow fuse to avoid battery drain in rare fault situation
COMPATIBLE WITH
Quad Lock Weatherproof Wireless Charging Head (V3 / V2)
INCLUDED IN BOX 1x Waterproof 12V to USB Smart Adaptor with 1.5m USB-A Female Port and 10cm SAE Cable
1x 1m SAE to Ring Terminal Cable with in-line fuse
1x USB-A Seal Boot
5x 5mm x 250mm Zip Ties
MATERIALS
Smart Adaptor Housing: Polycarbonate (PC)
Toggle Switch: TPU
Cables / SAE, USB & Ring Terminal Overmoulds: PVC
Ring Terminals: Brass
INPUT
12V - 24V DC
OUTPUT
USB-A up to 18W Max Power (5V/3A, 9V/2A, 12V/1.5A)
IP RATING
IP66 Water Resistant
